Rotel CD-spelers 2018



CD14:CD-Speler :679,00 €

CD-Speler :Het ontwerp van de CD14 begint met een zorgvuldig ontworpen voeding die gescheiden, rimpelvrije spanning en stroom levert aan zowel digitale als analoge circuits. De speler biedt dezelfde strakke vormgeving en intu´tieve bediening als de andere modellen uit de 14 Serie en zorgt dankzij hoogwaardige technologie dat u zelfs de kleinste muzikale details uit een opname zult horen. Rotel heeft de lat voor hoogwaardige en betaalbare CD-spelers al vele jaren geleden erg hoog gelegd, zegt Rob Sinclair. Hoewel andere fabrikanten het formaat inmiddels hebben laten vallen, beseffen wij dat er nog heel veel muziekliefhebbers zijn met omvangrijke CD-collecties. De CD14 geeft hen de mogelijkheid om die collecties op de best mogelijke manier te beluisteren



rotel cd14 cd dac stereohouse
Product Description

In 1989, Rotel confirmed its digital audio expertise with the launch of the RCD-855 CD player. The press was overwhelming in its praise, one critic going so far as to call it “The steal of the century”, and since then Rotel has never looked back.

The CD14 design begins with a carefully engineered power supply to ensure separate, ripple-free voltage and current to both digital and analogue circuits. It maintains the same clean lines and intuitive operation as the other 14 series models, while demonstrating an uncanny ability to resolve even the smallest musical details in a recording.

Dimensions (W × H × D)
430 × 98 × 312mm
Front Panel Height
80mm
Power Requirements
230V, 50Hz
Power Consumption
15W
Standby Power Consumption
<0.5W
Net Weight
5.9kg (13lbs.)
BTU Rating
51 BTU/h
Total Harmonic Distortion (THD)
0.002% @ 1kHz
Frequency Response
20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted)
>118dB
Dynamic Range
>99dB
Digital to Analog Converters
Wolfson 24-bit/192kHz
Channel Balance
±0.5dB
Channel Separation
>115dB @ 10kHz




RCD1572 CD-SPELER / 999 EURO



RCD1570 ROTEL CD SPELER

Product Description

Al sinds de introductie van de CD in 1982, is Rotel druk bezig met het verfijnen van de technologie om het best mogelijke geluid te halen uit de CD. De RCD-1572 is het resultaat van deze verfijning en onthult zelfs de meest subtiele details die verborgen liggen in elke opname. EÚn van de belangrijkste eigenschappen van de RCD-1572 is de ge´ntegreerde Wolfson WM8740 digitale filter/digitaal naar analoog converter (DAC). Deze geavanceerde audio innovatie verwerkt digitale signalen tot 24 bits lengte op sampling rates van 8 kHz tot 192 kHz. Dit lijkt wellicht wat buitensporig voor CDĺs die met lagere datarates werken, maar de hoge snelheid zorgt voor extra capaciteit om natuurgetrouw geluid onder alle omstandigheden weer te geven. Het resultaat is CD kwaliteit zoals u die nog nooit gehoord heeft. Het ontwerp van de RCD-1572 is gebaseerd op Rotels Balanced Design Concept, waarbij hoogwaardige techniek is behuisd in een strakke vormgeving. Alle componenten in de CD speler van weerstanden en condensators tot inductoren zijn zorgvuldig gekozen om optimaal geluid te leveren



Dimensions (W × H × D)
431 × 104 × 320mm
Front Panel Height
2U / 88.1mm )
Power Requirements
230V, 50Hz
Power Consumption
15W
Standby Power Consumption
<0.5W
Net Weight
6.7kg (15lbs.)
BTU Rating
33 BTU/h
Total Harmonic Distortion (THD)
0.002% @ 1kHz
Frequency Response
20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted)
>118dB
Dynamic Range
>99dB
Digital to Analog Converters
Wolfson 24-bit/192kHz
Channel Balance
±0.5dB
Channel Separation
>115dB @ 10kHz



Product Description

Since 1982, when the CD was introduced, Rotel has been refining technology and evolving circuitry to bring you extraordinary sound from the familiar silver disc. As most music lovers have a substantial collection of compact discs, a high quality CD player is still an important part of most music systems. The RCD-1572, the outstanding CD player in Rotel‘s 15 series, focuses careful refinements to reveal even the most subtle nuances buried in a CD’s pit spiral.

The RCD-1572 elevates performance by utilizing a purpose designed and built CD mechanism along with other circuit refinements. One of the RCD-1572’s most important features is the Wolfson WM8740 digital filter/stereo digital-to-analogue converter. Originally developed for high resolution sources, it is the product of extensive research and real world testing and processes digital signals up to 24-bits in length at sampling rates from 8 kHz to 192 kHz.

While word lengths and sampling speed may seem excessive for CDs delivering data at far lower rates, this high speed facility adds reserve capability to ensure proper reproduction under all circumstances. As the most crucial link between a CD’s digital data and the analogue world in which we listen, this converter boasts significant attributes in addition to its superb high resolution capabilities.

The post-converter analogue circuitry benefits from Rotel‘s decades-long experiences in crafting the finest sounding pathway from the DAC’s internal output to RCA and XLR rear panel connectors that bridge the gap between the RCD-1572 and down-stream components. All circuit components – resistors, capacitors, inductors – are chosen only after their positive contribution to sound quality were quantified and verified qualitatively by extensive listening sessions.

All of these circuits draw on a power supply based on an oversized custom Rotel-designed and precision-manufactured toroidal power transformer that, in turn, feeds precise rectifiers, tight-tolerance voltage regulators, and advanced Slit-Foil low-ESR storage capacitors, all globally sourced to ensure musically accurate operation under even the most demanding conditions.

This is all part of Rotel’s long-proven Balanced Design Concept. It’s yet another way of assuring you that the RCD-1572 evidences a level of attention that will make it part of your reference-level music system for years to come.




stereohouse rotel fransvaneeckhout roeselare



ARCHIEF / voor 2016



Rotel CD-spelers 2016

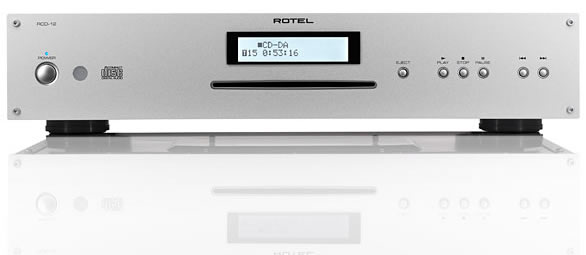

RCD12 CD-SPELER: 649 euro



Model RCD-12
Total Harmonic Distortion + Noise 0.0045%@1kHz
Intermodulation Distortion





0.0045%@1kHz

Frequency Response (±0.5db) 20-20,000Hz
Channel Balance ±0.5db
Phase Linearity ±0.5degree
Channel Separation > 98dB@1kHz
Signal to Noise Ratio >100dB
Dynamic Range >96dB
Digital to Analogue Converter Wolfson
Analogue Output Impedance 100Ω
Digital Output
0.5Volt, Peak to Peak
Digital Output Impedance 75Ω
General -
Power Requirements (AC) 120V, 60Hz (USA) 230V, 50Hz (Europe)
Power Consumption 15 Watts
Standby Power Consumption 0.5 Watts
Dimensions (W x H x D) 430 x 93 x 313mm (17 x 3 5/8 x 12 5/16 ins)
Panel Height 80mm / 3 1/8 ins 80mm (3 1/8ins)
Weight (Net)
5.4kgs (11.9lbs)
Finishes Black, Silver
fransvaneeckhout stereohouse promoties stockverkoop tweedehands RCD12 CD SPELER ROTEL

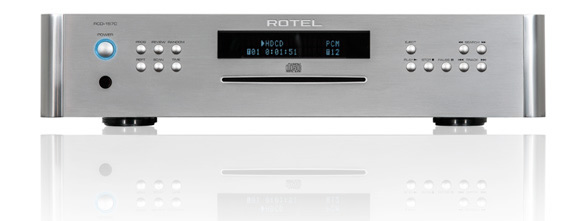

RCD1570 CD-SPELER / 969 EURO



Model RCD-1570
Frequency
response
(±0.5db) 20-20,000 Hz
Total harmonic
distortion + noise
0.0045%@1kHz
Channel balance ±0.5db ±0.5db
Channel
separation
> 98 dB @ 1kHz
Signal to noise ratio > 100dB
Dynamic range > 96 dB
Digital to analogue
converter
Wolfson
Analogue output level/impedance (RCA) 2.0V / 100 Ohms
Analogue output level/impedance (XLR) 4.0V / 200 Ohms
Digital output 0.5 Volt, peak to peak
Digital output impedance 75 Ohms
Power requirements (AC) 120V, 60Hz (USA),
230V, 50 Hz (Europe)
Power consumption 15 Watts
Standby power
consumption
< 0.5 Watts
Dimensions
(W x H x D) mm
(W x H x D) in
431 x 93 x 320 mm
17 x 4 x 12 5/8 in
Panel height
U/mm/inch
2U / 88.1 mm / 3 1/2 in
RCD1570 ROTEL CD SPELER

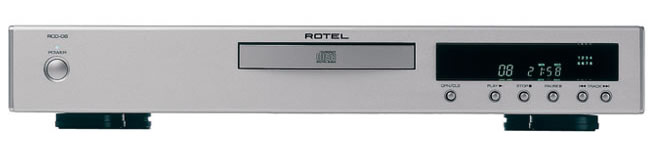

RCD-06 CD-speler : € 500 nog 1 stuk leverbaar

fransvaneeckhout stereohouse promoties stockverkoop tweedehands

Rotel RCD-06 CD-speler rcd06



. Quartz Crystal Precision
. Low noise / low distortion operation
. Dedicated Remote control
. 12 volt trigger

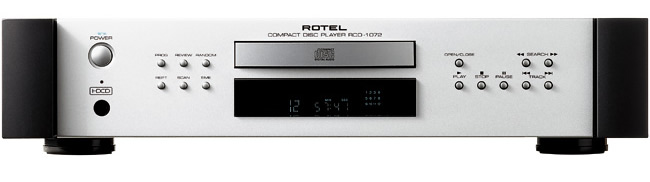

RCD-1072 HDCD CD-speler : € 900 nog 1 stuk leverbaar



Rotel RCD-1072 CD-speler rcd1072



. Burr Brown 1732 D/A converter
. Coaxial digital output
. Toroidal transformer
. 12 volt trigger












archief:modellen voor 2016 :

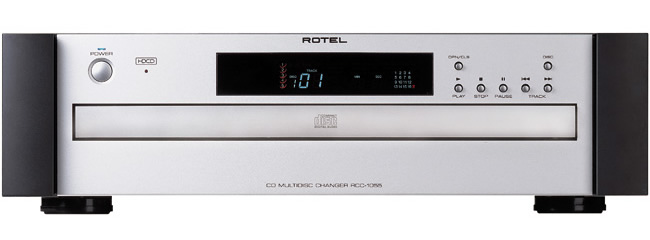

RCC-1055 5-disc CD-changer: € 750



fransvaneeckhout stereohouse promoties stockverkoop tweedehands

Rotel RCC-1055 5-disc cd-changer CD-speler rcd1072



. Burr Brown PCM 1732 D/A converter
. Coaxial digital output
. Detachable power cord
